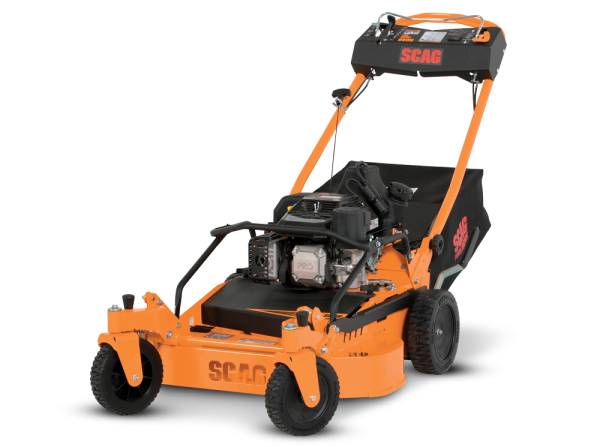

SCAG SFC30 – Walk behind Mower

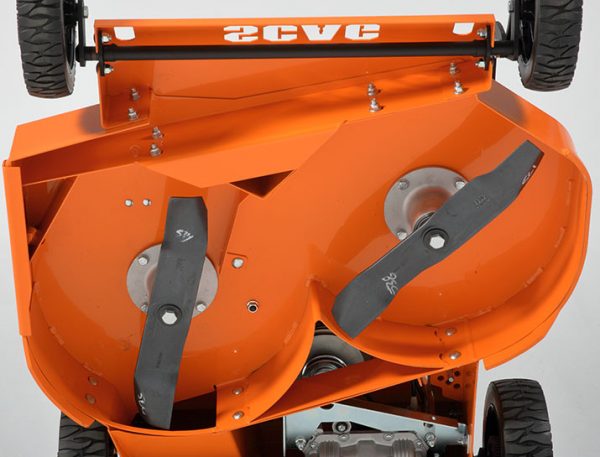

SIMPLIFIED DECK DRIVE SYSTEM
An offset blade design is less complex and easier to maintain than traditional timed deck setups. This more robust system results in potential belt replacements taking less than half the amount of time to repair/replace compared to timed deck systems. Image shown with bagging baffle.
Description
| Model | Description |
|---|---|
| SFC30-7CV-S | 30" fully fabricated steel cutter deck, Kohler 224CV engine – recoil-start engine, Swivel Front Caster |
| Product Dimensions | SFC30 | SFC30 Swivel |
|---|---|---|
| Length – Transport (handles in upright transport position) | 41" | 44" |
| Length – Minimum (handles in highest operating position) | 66" | 69" |
| Length – Max (handles in lowest operating position) | 73.5" | 76.5" |
| Tracking Width | 28.75" | 28.75" |
| Width (w/ discharge chute) | 36.75" | 36.75" |
| Width (w/ discharge block off plate) | 31.5" | 31.5" |
| Height – Lowest Operating | 36.75" | 36.75" |
| Height – Max Operating | 45.25" | 45.25" |
| Height – w/ Handle Bar in Storage Position | 57.5" | 57.5" |
| Operating Weight – Bagging | 220 lbs. | 233 lbs. |
| Operating Weight – Mulching | 214 lbs. | 227 lbs. |
| Operating Weight – Discharging | 213 lbs. | 226 lbs. |
| Specification | SFC30 | |
|---|---|---|
| General | Total Fuel Capacity | 1 gallon (0.37 gallon capacity for California models) |
| Rear Tires | 10.5" x 3" rubber tire w/ glass-filled polypropylene wheel | |
| Front Tires | 9” x 2.25” rubber tire w/ glass-filled polypropylene wheel | |
| Drive System | Drive System Type | GT MV 702 Transmission |
| Forward Ground Speed | Up to 4 mph | |
| Parking Brake | Hand lever | |
| Deck | Cutting Widths | 30" |
| Type | Extra-strong, fully fabricated and welded steel cutter deck. Offset blade, non-timed deck setup. | |
| Cutting Height | 1.5" to 5" in .25" increments. | |
| Blade Type | Optimized for maximum performance whether discharging, mulching or bagging | |

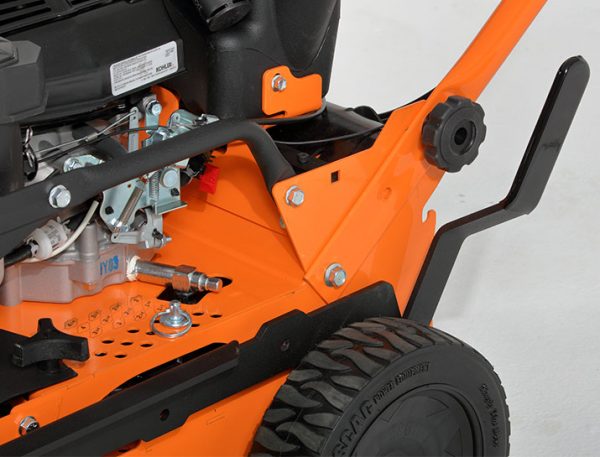

| Deck Lift | Hand lever. Single-point adjustment. | |
| Construction | 14-gauge, grade 100, Military Grade steel deck shell with 12-gauge spindle reinforcement plate. ¼” trim side reinforcement bar offers extra protection against impacts. | |
| Spindles | Aluminum housing with sealed ball bearings. | |
| Blade Engagement | Blade brake clutch allows operator to disengage cutter blades without shutting off the machine. | |
| Discharge, Mulch, Bag | Standard | |
| Bag Capacity | 2.5 Bushels |
